Case Study
VW Beetle ABS, Traction Control and TPMS Warning Lights On
Our customer's VW Beetle came in with the ABS, traction control and TPMS (tyre pressure monitoring) warning lights on. They had topped up the tyre pressures and reset the TPMS, which turned all the warning lights off, but the next day all three came back. Our VW specialist technicians carried out a full diagnostic investigation to find the real cause.
Fault Codes
283 – Front left speed sensor G47 – implausible signal
Common Symptoms
- ABS warning light on
- Traction control warning light on
- Tyre pressure (TPMS) warning light on
- Lights returning after the TPMS has been reset
VW Beetle Diagnostics

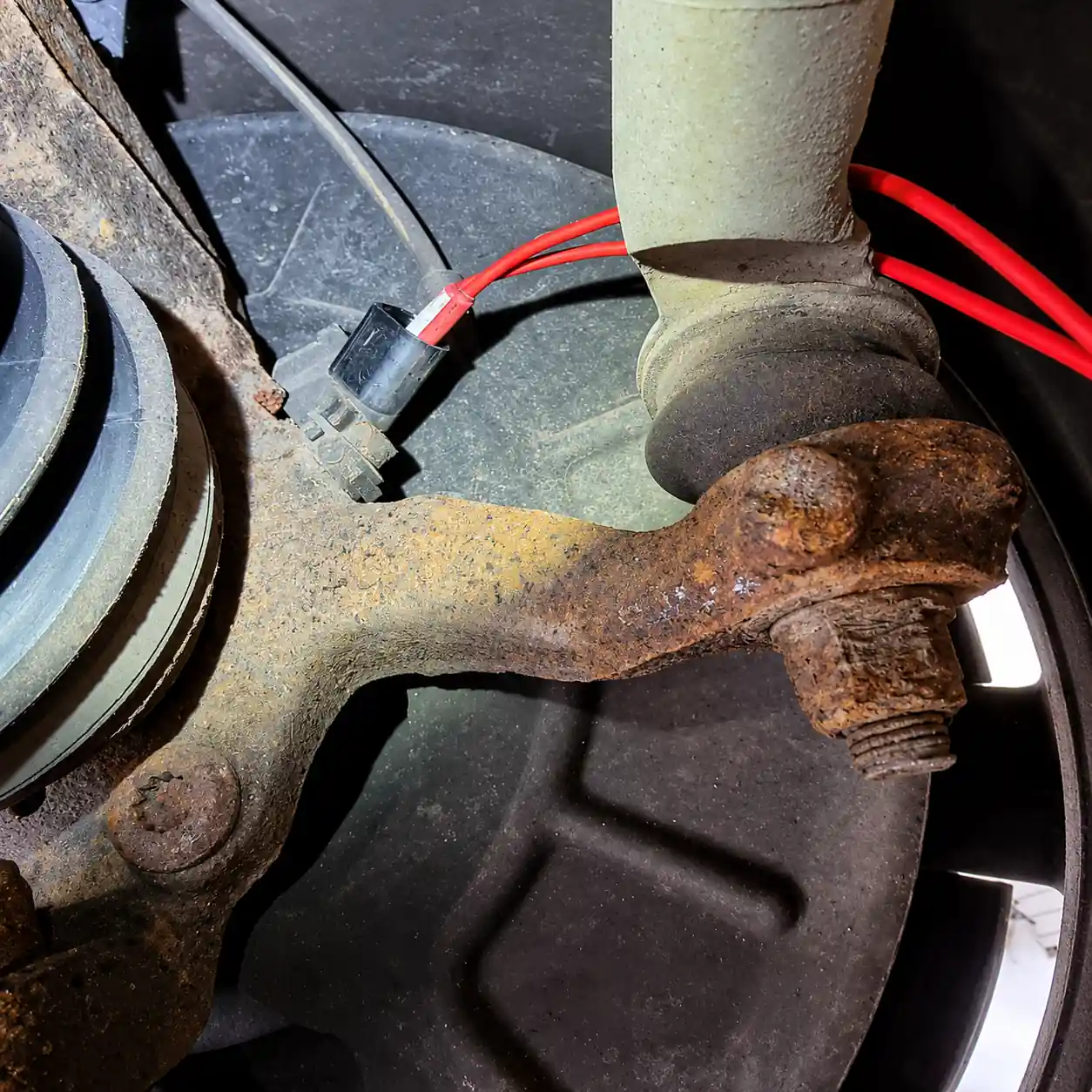

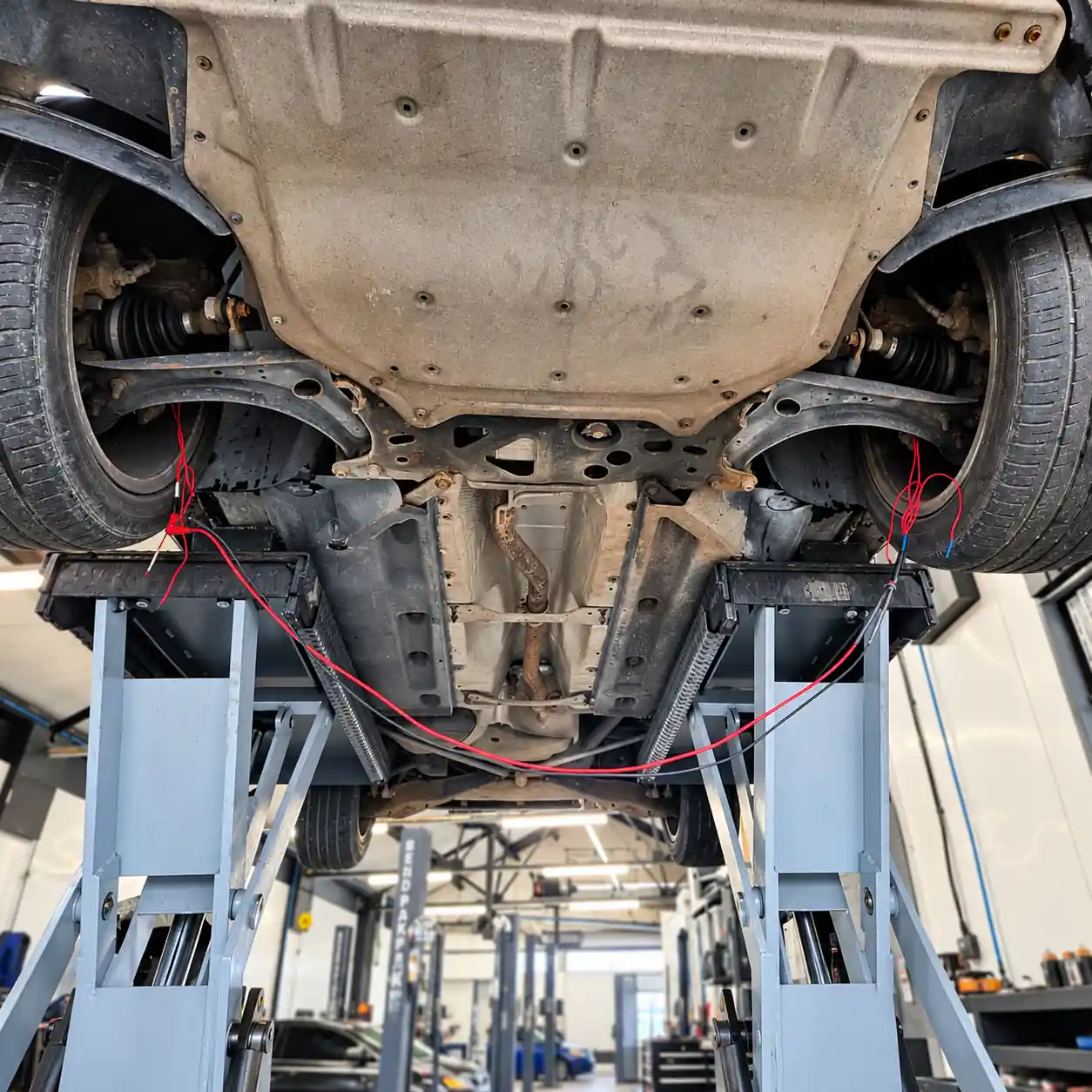

Our diagnostic tests returned fault code 283, showing an implausible signal from the front left wheel speed sensor (G47). On many VW models, the ABS, traction control and tyre pressure monitoring systems all rely on the same wheel speed signals, which is why one faulty sensor can bring on all three warning lights. We carried out a wiring bypass test, which confirmed both the wiring and the ABS module connected to the front left sensor were working correctly. That left either the wheel speed sensor or its pick-up ring as the cause. A visual inspection and check of the pick-up ring showed it was in good condition, confirming the sensor itself had failed.
Vehicles Affected
VW Beetle
- VW Beetle 1998
- VW Beetle 1999
- VW Beetle 2000
- VW Beetle 2001
- VW Beetle 2002
- VW Beetle 2003
- VW Beetle 2004
- VW Beetle 2005
- VW Beetle 2006
- VW Beetle 2007
- VW Beetle 2008
- VW Beetle 2009
- VW Beetle 2010
- VW Beetle 2011
- VW Beetle 2012
- VW Beetle 2013
- VW Beetle 2014
- VW Beetle 2015
- VW Beetle 2016
- VW Beetle 2017
- VW Beetle 2018
- VW Beetle 2019
VW Golf
- VW Golf 1998
- VW Golf 1999
- VW Golf 2000
- VW Golf 2001
- VW Golf 2002
- VW Golf 2003
- VW Golf 2004
- VW Golf 2005
- VW Golf 2006
- VW Golf 2007
- VW Golf 2008
- VW Golf 2009
- VW Golf 2010
- VW Golf 2011
- VW Golf 2012
VW Polo
- VW Polo 2002
- VW Polo 2003
- VW Polo 2004
- VW Polo 2005
- VW Polo 2006
- VW Polo 2007
- VW Polo 2008
- VW Polo 2009
- VW Polo 2010
- VW Polo 2011
- VW Polo 2012
- VW Polo 2013
- VW Polo 2014
- VW Polo 2015
- VW Polo 2016
- VW Polo 2017
VW Beetle ABS Sensor Replacement
Once we had confirmed the ABS wheel speed sensor needed replacing and received our customer's authorisation, we ordered a genuine Volkswagen sensor. When it arrived, we fitted the new passenger side front wheel speed sensor and cleared all the stored fault codes.
Resolution
After replacing the front wheel speed sensor and clearing the fault codes, no further codes returned. The ABS, traction control and TPMS warning lights all stayed off, and our customer's VW Beetle was back on the road.
